ASRock AM1H-ITX
| ASRock AM1H-ITX | |
|---|---|
 | |
| Overview | |
| Introduced | 2014 |
| Manufacturer | ASRock |
| Specifications | |
| Socket | AM1 |
| Chipset | None (AM1 is an SoC) |
| Super I/O | Nuvoton NCT6776D |
| Memory | 2 slots (1 channel) |
| BIOS Flash | 4 MiB DIP-8 (W25Q32FV) |
| Form Factor | Mini-ITX |
| Expansion Slots |
|
| Onboard Peripherals | |
| Network Interface | Realtek RTL8111GR (1xGbE) |
| Storage Controller | |
| USB Controller | |
The ASRock AM1H-ITX is a motherboard for AMD's highly-integrated AM1 APUs on the fam16h Kabini platform.

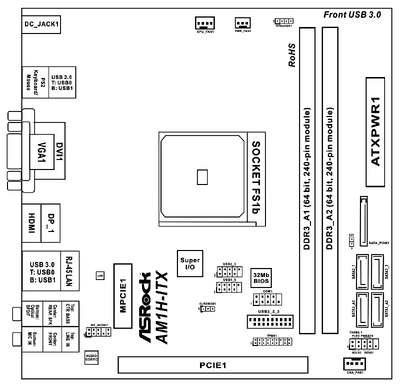

Motherboard Diagrams
Motherboard Components
Socket AM1
AMD Socket AM1, also known as Socket FS1b, supports Kabini Athlon and Sempron processors.
Official Documentation
Processors
Kabini Athlon and Sempron processors are compatible with the AM1 Socket.
Official Source Code and Documentation
- AGESA Source Code
- AGESA Interface Specification
- BIOS and Kernel Developer's Guide
- Product Data Sheet (Athlon)
- Product Data Sheet (Sempron)
- Software Optimization Guide
- Instruction Latency Data
DDR3 Memory
The A2 slot must be populated if using only 1 DIMM.
Nuvoton NCT6776D
The NCT6776F / NCT6776D is a member of Nuvoton’s Super I/O product line. The NCT6776F / NCT6776D monitors several critical parameters in PC hardware, including power supply voltages, fan speeds, and temperatures
AsMedia ASM1061
The AsMedia ASM1061, X1 PCI Express Gen2 to two-ports Serial ATA Controller, enables Serial ATA PHY up to 6Gbps high speed interface, following Serial ATA Revision 3.0 Specification.
