Nuvoton WPCM450

From 15h.org
Jump to navigation Jump to search

The Nuvoton WPCM450 is a combined Baseboard Management Controller and 2D/VGA-compatible Graphics Core with PCI Interface, Virtual Media, Keyboard and KVMR Module[1]. Multiple vendors shipped the WPCM450 with Linux, making it feasible to build an open source replacement for the original BMC firmware[2][3][4]. 3rd party documentation and tools have been developed by neuschaefer and are available on github. The WPCM450 appears to be related to, or based on, the Winbond W90N745.

Official Documentation

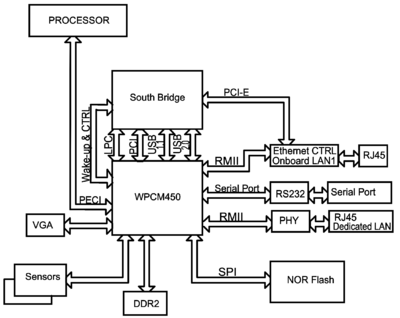

Block Diagrams

References

  1. ↑ https://theretroweb.com/chips/10379
  2. ↑ https://github.com/neuschaefer/linux/tree/vendor/wpcm450-aten
  3. ↑ https://github.com/neuschaefer/linux/tree/vendor/wpcm450-ami
  4. ↑ https://github.com/neuschaefer/linux/tree/vendor/dell-idrac6-1.70
