| orion | |
|---|---|

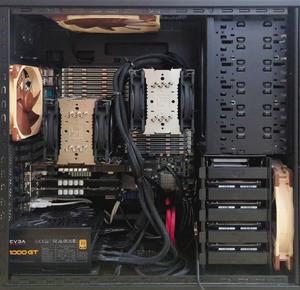

 An inside view of orion | |
| Overview | |
| Owner | mrothfuss |
| Built | 2025 |
| Hardware | |
| Motherboard | KGPE-D16 |
| CPU | 2x Opteron 6386 SE |
| RAM | 512GB (16x Samsung M393B4G70BM0-YH9) |
| Storage Devices |
|
| Storage Controller | Broadcom / LSI SAS2308 (IT-mode) |
| Power Supply | 1000W (EVGA 1000 GT) |
| Chassis | Coolermaster HAF 932 |
| CPU Cooler | 2x Noctua NH-U12DO A3 |
| Software | |
| Firmware | coreboot-15h |
| Firmware Payload | SeaBIOS |
| Option ROMs Executed? | None |
| Operating System | RABID FreeBSD |
| Filesystem | ZFS |
| Primary Workload | Workstation |
orion is mrothfuss's silent workstation. The Noctua NF-P12 3-pin fans on the CPU coolers were replaced with ARCTIC P12 Pro PST 4-pin fans for more efficient and quiet cooling. A sidepanel Noctua NF-A20 FLX (not pictured) pushes fresh air onto the PCIe devices and chipset heatsinks.
