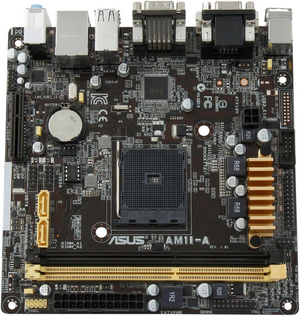

ASUS AM1I-A
Overview
Introduced2014
ManufacturerASUS
Specifications
SocketAM1
ChipsetNone (AM1 is an SoC)
Memory2 slots (1 channel)
BIOS Flash8 MiB socketed DIP-8
Form FactorMini-ITX
Power Inputs1x 4-pin EPS
Onboard Peripherals

The ASUS AM1I-A is a motherboard for AMD's highly-integrated AM1 APUs on the fam16h Kabini platform.

Open Source Firmware

This motherboard is not currently supported in coreboot-15h. However, it was supported in upstream coreboot until recently. Instructions for building its firmware can be found on Mike Banon's webpage.

The related MicroATX AM1M-A is not currently supported.

Flashing Firmware

To switch from the stock firmware to coreboot, external flashing is required.

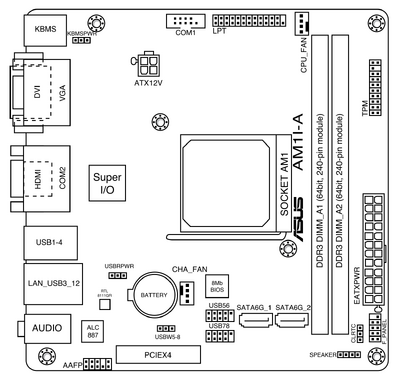

Board Diagrams
