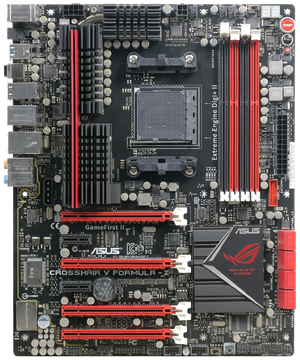

ASUS Crosshair V Formula-Z
| ASUS Crosshair V Formula-Z | |
|---|---|
 | |
| Overview | |
| Introduced | 2012 |
| Manufacturer | ASUS |
| Specifications | |
| Socket | 1x AM3+ |
| Northbridge | AMD 990FX |
| Southbridge | AMD SB950 |
| Super I/O | ITE IT8721F |
| Memory | 4 slots (2 channels) DDR3-1600 ECC UDIMM, up to 64GB |
| BIOS Flash | 8 MiB socketed DIP-8 (W25Q64FVAIG) |
| Form Factor | ATX |
| Power Inputs | 1x 8-pin EPS |
| Expansion Slots |
|
| Onboard Peripherals | |
| Serial Interface | One internal |
| Audio Interface | Integrated (SB950 HD Audio), ALC892 codec |
The ASUS Crosshair V Formula-Z motherboard is under development.
Motherboard Components
Socket AM3+
Socket AM3+ is compatible with AMD Opteron 3000 series processors, and with the final two generations of AMD FX processors. Consumer AM3+ boards support all AM3+ CPUs, while server boards such as the H8SML are believed to support only the 3000-series Opterons. All compatible CPUs contain a single NUMA node.
Socket AM3+ was also designed to be backwards-compatible with the earlier Socket AM3 CPUs (Phenom II and Athlon II). However, these K10-microarchitecture CPUs are not currently supported by coreboot-15h.
AMD Opteron 3200 and 3300 Series
Processors in the AMD Opteron 3200 and 3300 Series were designed with the Bulldozer (3200 series) and Piledriver (3300 series) microarchitectures and are compatible with the AM3+ socket.
Official Source Code and Documentation
- AGESA Source Code
- AGESA Interface Specification
- BIOS and Kernel Developer's Guide
- Product Data Sheet
- Software Optimization Guide

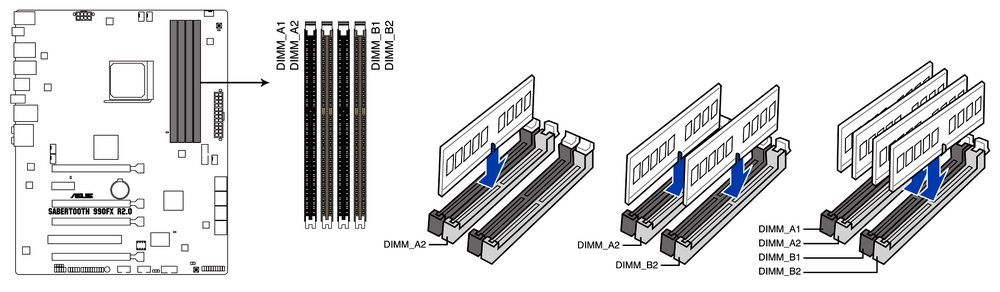

DDR3 Memory
AMD 990FX
The AMD 990FX is a high-performance enthusiast chipset launched in 2011 for Socket AM3+ processors, offering robust support for AMD FX-Series (Bulldozer/Vishera) 8-core CPUs and multi-GPU setups. Key features include 32 PCIe 2.0 lanes, native SATA 6Gb/s, USB 3.0, and strong overclocking capabilities, often paired with the SB950 southbridge.
Official Source Code and Documentation
Part Numbers
- AMD 215-0716046
AMD SB950
The AMD SB950 is a Southbridge chipset designed for Socket AM3+ and AM3 motherboards, specifically supporting AMD FX, Phenom II, Athlon II, and Sempron processors. Released to accompany the 900-series Northbridge (990FX/990X/970), it brings native SATA 6Gb/s support for fast storage and 6x SATA ports, generally offering high compatibility for DDR3-based systems.
Official Source Code and Documentation
- SB800 CIMx Source Code
- SB800 BIOS Developer's Guide
- SB800 Register Reference Guide
- SB800 Register Programming Requirements
- SB800 Product Databook
- SB800 Product Errata
- SB900 CIMx Source Code
- SB900 Product Errata
Part Numbers
- AMD 218-0697031
ITE IT8721F
The ITE IT8721F is a highly integrated Super I/O using the Low Pin Count Interface. It provides the most commonly used legacy Super I/O functionality plus the latest Environment Control initiatives, including H/W Monitor and Fan Speed Controller.
