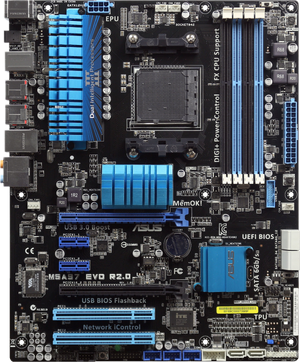

ASUS M5A97 EVO R2.0
| ASUS M5A97 EVO R2.0 | |
|---|---|
 | |
| Overview | |
| Introduced | 2012 |
| Manufacturer | ASUS |
| Specifications | |
| Socket | 1x AM3+ |
| Northbridge | AMD 970 |
| Southbridge | AMD SB950 |
| Super I/O | ITE IT8721F |
| Memory | 4 slots (2 channels) DDR3-1866 ECC UDIMM, up to 64GB |
| BIOS Flash | 8 MiB socketed DIP-8 |
| Form Factor | ATX |
| Power Inputs | 1x 8-pin EPS |
| Expansion Slots |
|
| Onboard Peripherals | |
| Network Interface | Realtek RTL8111F |
| Storage Controller | |
| USB Controllers | |
| Audio Interface | Realtek ALC892 |
Motherboard Components
Socket AM3+
AMD Socket AM3+, also known as Socket AM3b or Socket AM3r2, is compatible with a subset of AMD Orochi processors. It is backwards compatible with K10 processors designed for the AM3 socket, but these are not yet supported by coreboot-15h.
Official Documentation
Processors
Orochi FX (Zembezi and Vishera) and Opteron (Zurich and Delhi) processors are compatible with the AM3+ socket. TDP ratings for these processors range between 25 W and 220 W. Each AM3+ motherboard has a maximum supported TDP for CPUs. For example, the Supermicro H8SML is only designed to support up to 65 W processors.
Official Source Code and Documentation
- AGESA Source Code
- AGESA Interface Specification
- BIOS and Kernel Developer's Guide
- Product Data Sheet (FX)
- Product Data Sheet (Opteron)
- Software Optimization Guide
AMD 970
The AMD 970, also known as the RX980, is a northbridge used with AM3+ processors. It has a total of 22 PCIe 2.0 lanes; providing one x16 slot, one x4 slot, and two x1 slots. The x16 slot can not be bifurcated. The RX980 supports HyperTransport 3.0 up to 2.4 GHz. It is often paired with the SB950 southbridge.
Official Source Code and Documentation
- CIMx Source Code
- BIOS Developer's Guide
- Register Reference Guide
- Register Programming Requirements
- Product Databook
- Product Errata
- IOMMU Specification
AMD SB950
The AMD SB950 is a Southbridge chipset designed for Socket AM3+ and AM3 motherboards, specifically supporting AMD FX, Phenom II, Athlon II, and Sempron processors. Released to accompany the 900-series Northbridge (990FX/990X/970), it brings native SATA 6Gb/s support for fast storage and 6x SATA ports, generally offering high compatibility for DDR3-based systems.
Official Source Code and Documentation
Related Source Code and Documentation
- SB800 CIMx Source Code
- SB800 BIOS Developer's Guide
- SB800 Register Reference Guide
- SB800 Register Programming Requirements
- SB800 Product Databook
- SB800 Product Errata
Part Numbers
- AMD 218-0697031
ITE IT8721F
The ITE IT8721F is a highly integrated Super I/O using the Low Pin Count Interface. It provides the most commonly used legacy Super I/O functionality plus the latest Environment Control initiatives, including H/W Monitor and Fan Speed Controller.
Realtek RTL8111F
The RTL8111F Gigabit Ethernet controller combines a triple-speed IEEE 802.3 compliant Media Access Controller (MAC) with a triple-speed Ethernet transceiver, PCI Express bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode signal technology, the RTL8111F offers high-speed transmission over CAT 5 UTP cable or CAT 3 UTP (10Mbps only) cable. Functions such as Crossover Detection and Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds.
AsMedia ASM1042
The ASM1042 is a USB 3.0 extended host controller designed to provide two ports over PCIe. It is designed for high speed, low power data transmit, backward compatible with current USB2.0 standard and complies with Intel’s eXtensible Host Controller Interface (xHCI) Revision 1.0.
AsMedia ASM1061
The AsMedia ASM1061, X1 PCI Express Gen2 to two-ports Serial ATA Controller, enables Serial ATA PHY up to 6Gbps high speed interface, following Serial ATA Revision 3.0 Specification.
VIA VT6308
The VT6308 IEEE 1394 OHCI Host Controller provides high performance serial connectivity. It implements the Link and Phy layers for IEEE 1394-1995 High Performance Serial Bus specification and 1394a-2000. It is compliant with 1394 OHCI 1.1 with DMA engine support for high performance data transfer via a 32-bit bus master PCI host bus interface.
Realtek ALC892
The ALC892 provides ten DAC channels that simultaneously support 7.1 channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs and one stereo digital microphone converter are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies.
Renesas 9LPRS477D
The Renesas 9LPRS477D is a main clock synthesizer chip that provides all clocks required for ATI RD7xx-based systems using AMD processors. An SMBus interface allows full control of the device.
ASUS KB3722Q
The KB3722Q is an undocumented "TurboV Processing Unit" (TPU) by ASUS.
